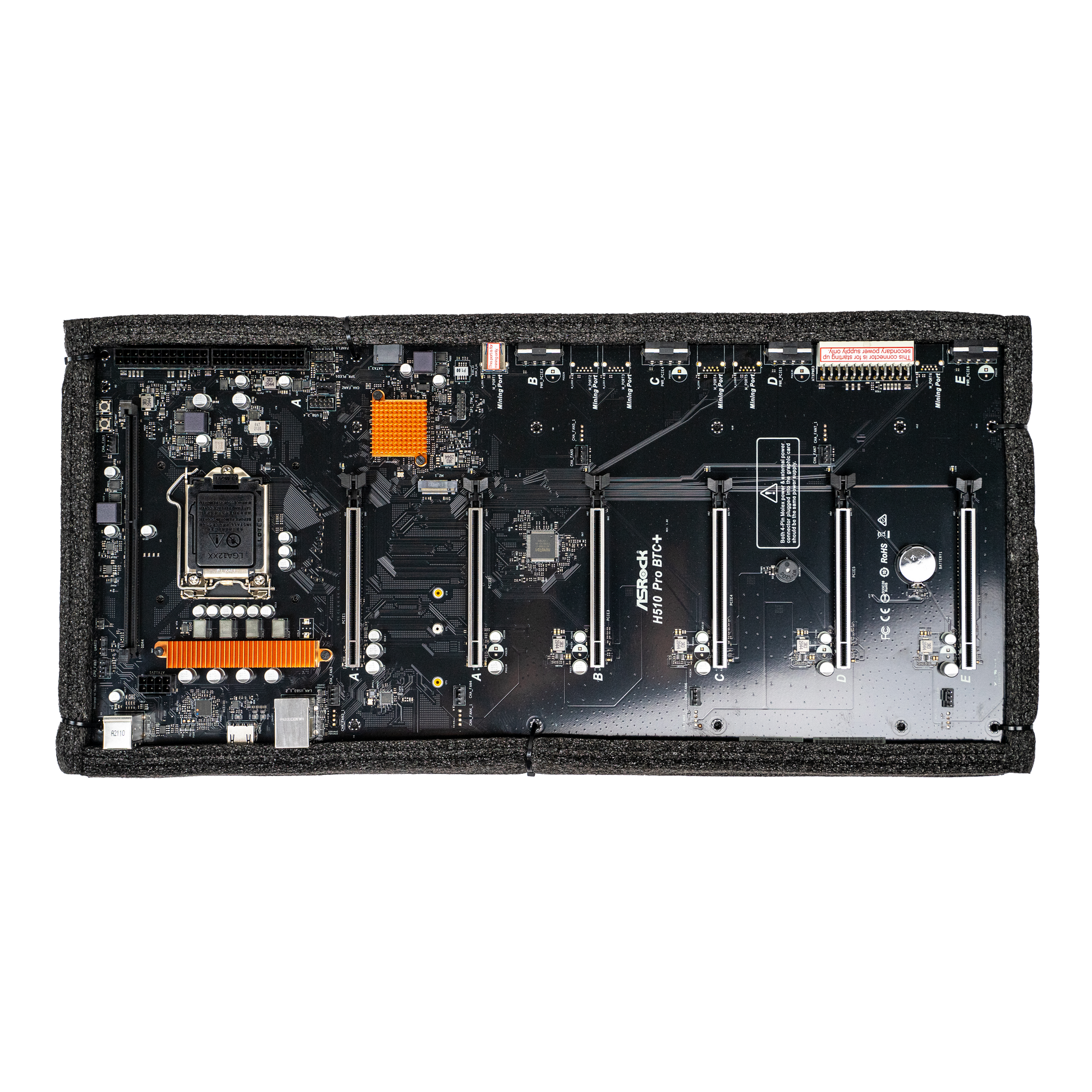

ASRock H510 Pro BTC+

The ASRock H510 Pro BTC+ is a specialized motherboard engineered for cryptocurrency mining, supporting both 10th and 11th generation Intel® Core™ processors on the LGA 1200 socket.

Key Features:

• Processor Support: Compatible with 10th and 11th Gen Intel® Core™ processors.

• Memory: Equipped with a single DDR4 DIMM slot, supporting up to 32GB of DDR4 memory with speeds up to 3200MHz.

• Expansion Slots: Features six PCIe 3.0 x16 slots and one mining port (M_Port1 at x1), facilitating the connection of multiple GPUs for enhanced mining capabilities.

• Storage Options: Includes one SATA3 port and one M.2 slot (SATA3 mode) for SSDs, offering data transfer rates up to 6Gb/s.

• Connectivity:

  • Two rear USB 3.1 Gen1 Type-A ports.
  • Four USB 2.0 Type-A ports (two rear, two front).
  • HDMI output for integrated graphics.
  • Intel® Gigabit LAN for reliable network performance.

• Power Design: Equipped with two extra 24-pin ATX power connectors and an 8-pin CPU power connector, ensuring stable power delivery to the system, crucial for mining operations.

• Additional Features:

  • Onboard Power On and Reset buttons for easy system management.
  • Smart PCIe State Detection displays the status of each GPU during system boot, aiding in troubleshooting and system monitoring.
  • PCIe Steel Slots provide reinforced slots to support heavy GPUs and prevent signal interference.
  • High Density Glass Fabric PCB design reduces gaps between PCB layers, protecting against electrical shorts caused by humidity.

This motherboard's design eliminates the need for riser kits, allowing GPUs to be installed directly onto the board, enhancing system stability. The inclusion of an onboard USB Type PCIe x1 mining port further expands GPU connectivity options.

The ASRock H510 Pro BTC+ is tailored for miners seeking a reliable and efficient platform for cryptocurrency mining, offering robust features to support extensive GPU setups and maintain system stability during intensive mining operations.
